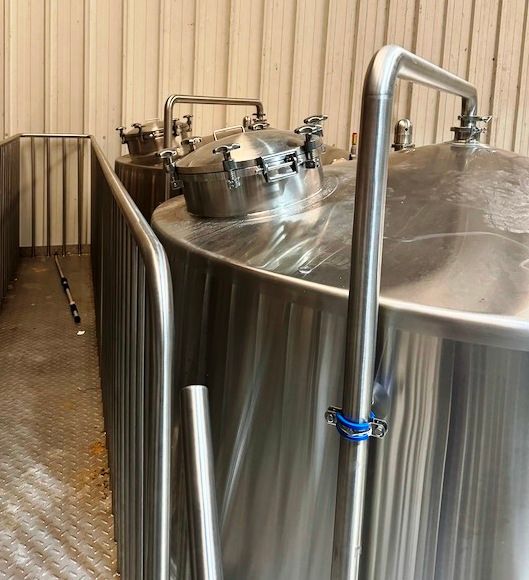

100HL DPV/uni -tank Fermenting and conditioning vessel - Second Hand

100HL DPV/uni -tank Fermenting and conditioning vessel

SECOND HAND

-Working capacity: 100 hl

-Total capacity: 125 hl

-Testing pressure 4,5 Bars (P.E.D. approval)

-Working pressure 3 Bars

-Stainless steel thickness mm 5

-Total height mm 6000

-External diameter mm 2200

-Stainless steel shell, AISI 304

-Stainless steel clad

-2B internal & external finishing

-Domed top

-Conical bottom

-Glycol jacket positioned on side

-Complete with manway on the top of vessel

-High density insulation

-4 Stainless steel legs with adjustable feet

-Each tank supplied with:

-Thermowell for PT 100 probe

-Sampling valve

-Partial outlet, with valve 1.5 inch Triclamp

-Total discharge, with valve

-Vacuum/pressure relief fitting, Triclamp

-Fittings for glycol inlet/outlet

-CIP arm, with removable spray ball assembly, pressure gauge

Pressure Rated and plated with CE Mark
