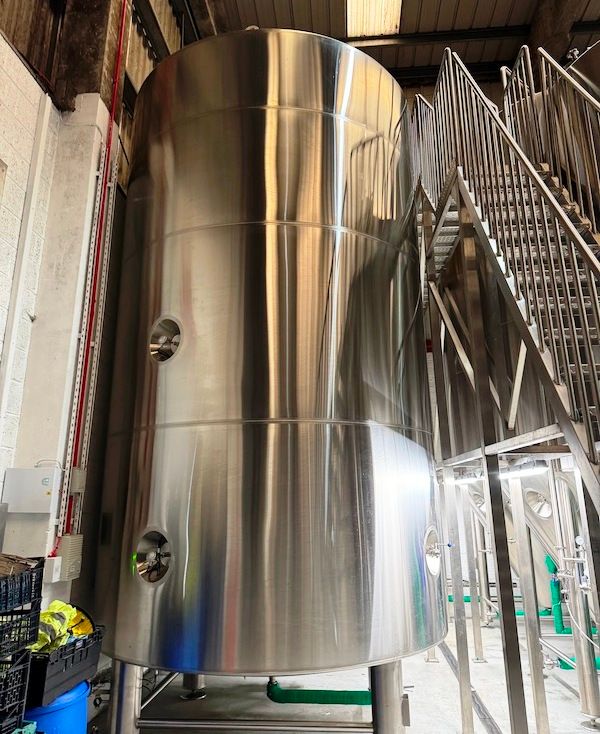

200HL Beer Conditioning tank - Second Hand

200HL Beer Conditioning tank

SECOND HAND

-Working capacity: 200 hl

-Total capacity: 250 hl

-Testing pressure 4,5 Bars (P.E.D. approval)

-Working pressure 3 Bars

-Total height mm 5800

-External diameter mm 2900

-Stainless steel thickness mm 6

-Stainless steel shell, AISI 304

-Stainless steel clad

-2B internal & external finishing

-Domed top

-Domed bottom

-Glycol jacket positioned on side

-Complete with manway on the top of vessel

-High density insulation

-4 Stainless steel legs with adjustable feet

-Each tank supplied with:

-Thermowell for PT 100 probe

-Sampling valve

-Partial outlet, with valve 1.5 inch Triclamp

-Total discharge, with valve

-Vacuum/pressure relief fitting, Triclamp

-Fittings for glycol inlet/outlet

-CIP arm, with removable spray ball

Assembly, pressure gauge, and CO2 valve

-Carbonating stone

Pressure Rated and plated with CE Mark
