40BBL Brewery - Second Hand

Description

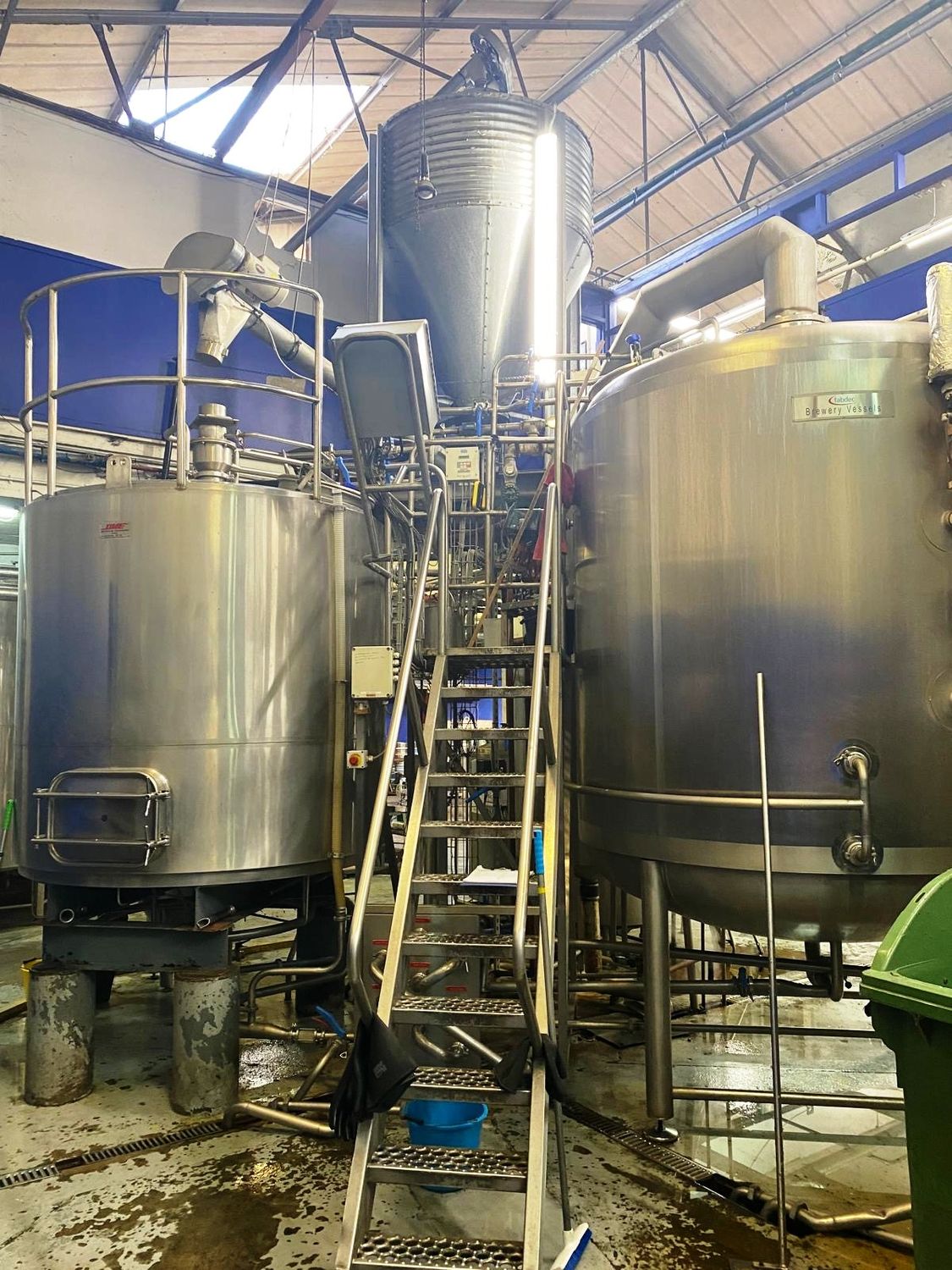

DME BREW HOUSE manufactured 2004

40 UKBBL Working Capacity

Steam heated

Grain Mill – 2 Roll malt mill

Type RAD 300

Serial Number 11692

6.5” solid steel tempered and grooved rolls

3HP drive Motor

Rigid Auger to elevate crushed malt into Grist case C/w Motor

Grist case , Galvanised cylindric conical hopper

Capacity 1.5 ton with discharge auger and motor feeding into Mash vessel

Grist hydrator

6” inlet mounted on top of the mash vessel

Hot Liquor tank DME

Vertical Cylindrical

40UK BBL working capacity

Approx 80HL Brimfull

Steam Heated

Approx Dimensions :

Overall height : 3430mm

Overall Diameter : 2350mm

Constructed in 304 stainless steel

Top Manway entrance

External Heat exchanger :

DME Type JAD-X3.18 to heat the hot liquor

Shell and tube construction

Constructed in 316 Stainless steel

Hot Liquor Pump . Thomsen pump . Stainless steel head, Centrifugal type

Cold Liquor heat exchanger . Plate and frame heat exchanger cooling incoming water from 68F to 38F at 10GPM using glycol at 28F

Cold Liquor Pump . Thomsen pump . Stainless steel head, Centrifugal type

Mash vessel DME

Cylindrical and constructed in 304 Stainless steel 2b internal finish.

Insulation on sides with 304 stainless steel external cladding

Fully enclosed vessel with top manway entrance and bottom side manway for spent grains removal.

Sectional wedge wire floor.

C.I.P, sparge ring and spray nozzles.

Multiple wort outlets collating in a wort collection header

Underflush system for backflush and cleaning under wedge wire floor

Dimensions ( APPROX)

OD : 2500mm

HEGHT : 2400mm

NB this vessel is mounted on two RSJ beams and requires a raised platform mounting point

Work Platform and acess ladders

Stainless steel construction giving acess to the mash vessel and Kettle

Kettle/Whirlpool

MANUFACTURED BY FABDEC

YEAR 2019

Vertical Cylindrical vessel.

Constructed in 304 stainless steel.

Steam heated via steam jackets. Designed for 10Bar pressure and tested to 22Bar

Fully enclosed with top entry Manway .

Insulated and clad in 304 stainless steel.

Fitted with : vapour vent point,Water inlet,C.I.P,

Whirlpool inlet

Vessel is mounted on stainless steel legs

Approx Dimensions :

2500mm OD

3500mm High

Vapour Condenser

Constructed in 304 stainless steel.

Complete with Vent piping to carry vapour from the kettle to the condenser.

Cold water is introduced through spray nozzles which cools the steam causing it to condense and run to drain

Hop Back DME

Vertical Cylindrical vessel.

Constructed in 304 stainless steel

Insulated and clad in 304 stainless steel.

Vessel is mounted on stainless steel legs

Sectional stainless steel lift up lids.

Internal hop retaining mesh

Approx Dimensions :

2400mm OD

3500mm High

Heat Exchanger for wort cooling

Plate heat exchanger designed to cool 40UKBBL of wort in 1 hour .

Complete with wort aeration assembly

Brew house pipework assembly including in line hop seed strainer

Wort Pump . Thomsen pump . Stainless steel head, Centrifugal type

Brew house control Panel mounted on work platform DME

Fermenting Vessels – DME

40 UK BBL working capacity

Vertical cylindrical 304 STAINLESS STEEL vessels with cooling jackets and insulation.

Insulated and clad in 304 stainless steel.

Open top with TWO SECTION lift off lids

C.I.P fitting.

C.I.P set DME

Statinary hot C.I.P system with 600 litre tanks and thomsen pump

Detergent tank is fitted with a steam heating jacket

3.5HL Yeast propogation Vessel DME

Stainless steel fermentation vessel with 60 degree cone bottom .Tank is insulated and clad in stainless steel

Top entry manway,C.I.P fitting and glycol coupling point

3.5HL Yeast brink ( storage vessel) Vessel DME

Stainless steel fermentation vessel with 60 degree cone bottom .Tank is insulated and clad in stainless steel

Top entry manway,C.I.P fitting and glycol coupling point

Steam Boiler Oil Fired

All associated boiler equipment

Water softeners etc
