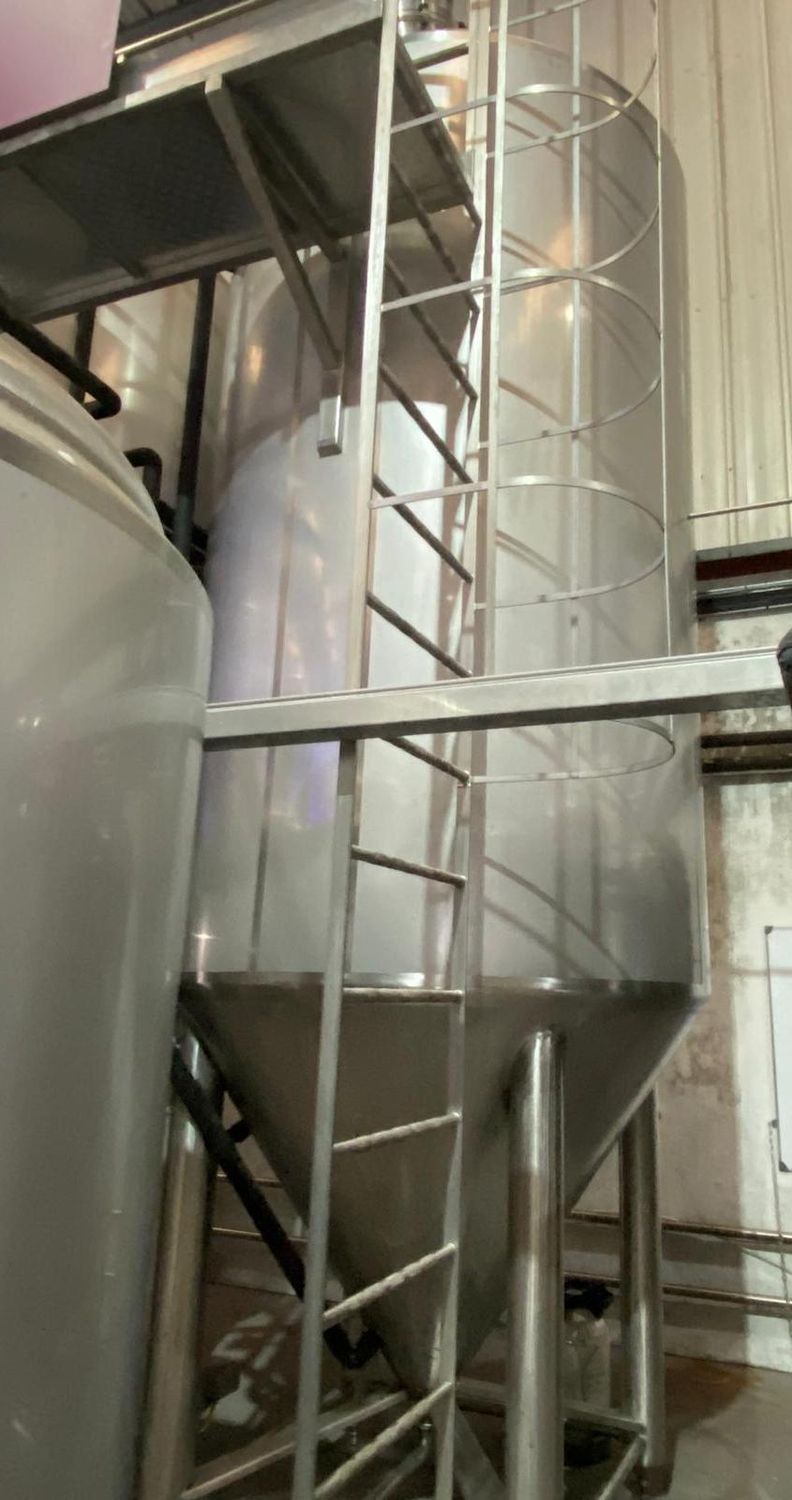

Fermenting vessels – Conical​ 80HL - Second Hand

Fermenting vessels – Conical 80HL

Manufactured by ECO BREW TECH

Manufactured 2014

Working capacity: 80 hl

Total capacity: 94 hl

Total height: mm. 4400

External diameter: mm. 2500

Operating pressure: 0,49 bar

Test pressure: 1,5 bar

Stainless steel shell, AISI 304,

2b finishing

Domed top,

Conical bottom

Dimpled glycol jackets positioned on side and cone of vessel

Complete with manway – Top

High density insulation – 50mm

Stainless steel legs

Each tank supplied with:

-thermowell with PT 100 probe

-sampling valve

-racking outlet,with valve

-total discharge, with valve 2” reduced to 1.5”

-vacuum/pressure relief fitting, tri-clamp

-Gas fitting for glycol/outlet-

-CIP arm , with removable spray ball assembly, pressure gauge, and CO2
